RAmi Audio PCS300

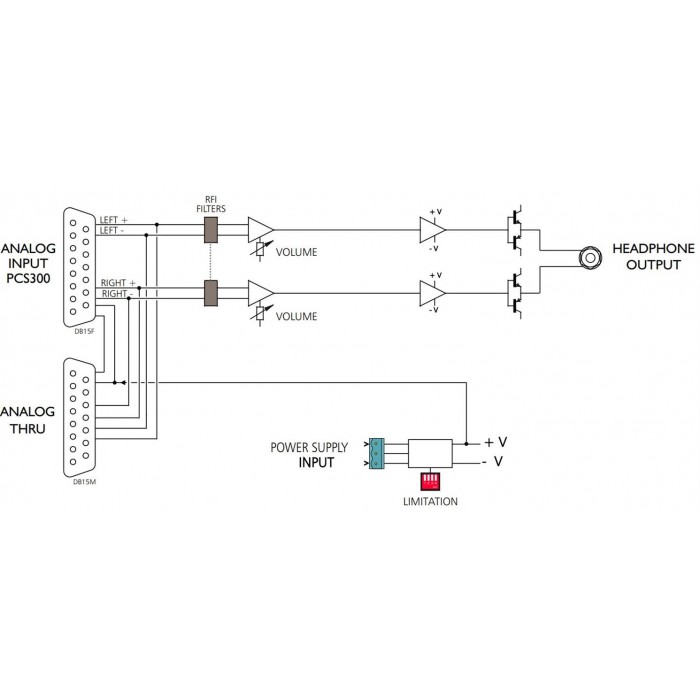

This small stereo amplifier has a sophisticated Output section which works at low impedance and solves problems created by the low impedance headphones. The PCS300 has a front panel headphone output and volume control, a 3/4" jack connector. There is also a Power LED to indicate unit operation.

Inputs and outputs are on on DB-15 connectors and can be looped from PCS300 to PCS300 for additional studio positions.

• Front panel headphones Output (3/4" jack) and volume control.
• Input audio on dB-15 female connector.
• Line Output channel for looping audio and power to another PCS300.
• Operates with an external PCS320 power supply.
