StreamS IOdigi2X

Brand: Streams

StreamS IOdigi2X™ is a simple AES/EBU – S/PDIF compatible Hi-Speed USB UAC-2 Digital Audio Interface providing one stereo digital input and one stereo digital output. It is Microsoft Windows, Apple macOS/iOS, and Linux ALSA device compatible, and uses class drivers, which means there is no driver installation necessary for basic operation using modern operating systems. For advanced features using Microsoft Windows, there is a full-featured StreamS IOdigi2X UAC-2 WDM/ASIO Driver provided. This is the easiest and quickest way to get professional quality audio in and/or out of a computer system.

StreamS IOdigi2X™ can be used for any synchronous bit-accurate, high sample rate play and/or record application, and uses either internal or external clock. This includes digital audio workstations, streaming audio encoders, SIP applications, or FM MPX radio applications. Bit-accuracy also allows use for test instrumentation measurement and signal generation. Several audio test software applications are available for different computer platforms.

StreamS IOdigi2X™ uses a high quality XMOS® xCORE audio engine for premium performance. It is suitable for pro-audio, broadcast, netcast, and consumer applications.

  • Easy, simple integration.
  • 2-Channel Stereo Digital Audio I/O for Record/Play Production and Streaming Encoders.
  • Portable Test Digital Audio I/O for Audio Analysis and Generator Software Applications.
  • USB Audio Class 2 Compliant – UAC-2.
  • 16-24 Bit / 44.1 – 192 kHz Sample Rate
  • Uses operating system class driver. No driver installation required. Optional Windows WDM Driver.
  • Works with Microsoft Windows, Mac OS-X, and Apple iOS iPhone/iPad, FreeBSD, Linux, and Android.
  • USB Bus powered. No external power supply required for Win/Mac/Linux operation.
  • Asynchronous USB Data Transfer.
  • Internal/External Audio Clock Synchronization.
  • Synchronous Digital Input and Output for Bit Accuracy.
  • Transformer Isolated Input and Output.

USB 2.0 – 3.0/3.1 Compatible

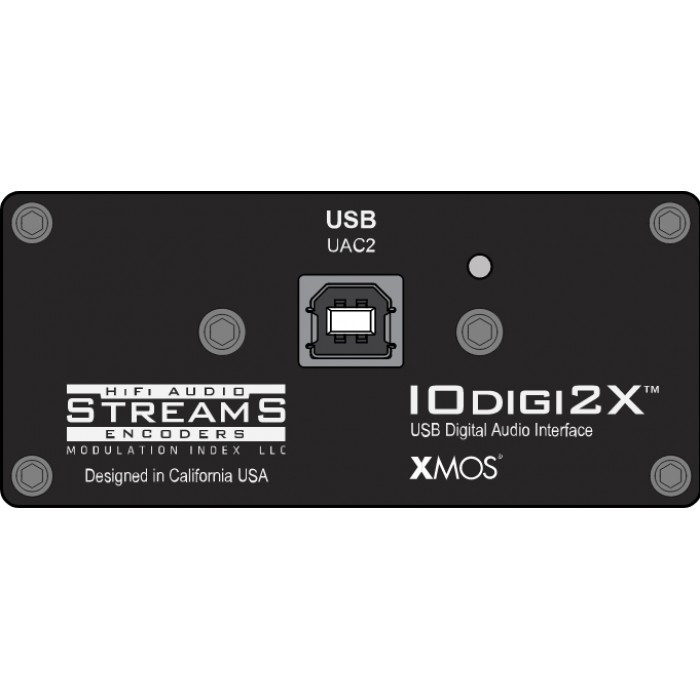

USB Connector     Type-B – USB 2.0
USB Mode     USB 2.0 Hi-Speed – 480 Mbps – USB Audio Class 2.0 Compliant – UAC-2
USB Audio Engine     XMOS® xCORE-200
USB Streaming Transfer     Asynchronous
Digital Audio Interface     AES/EBU – S/PDIF Compatible – Transformer Isolated Input and Output

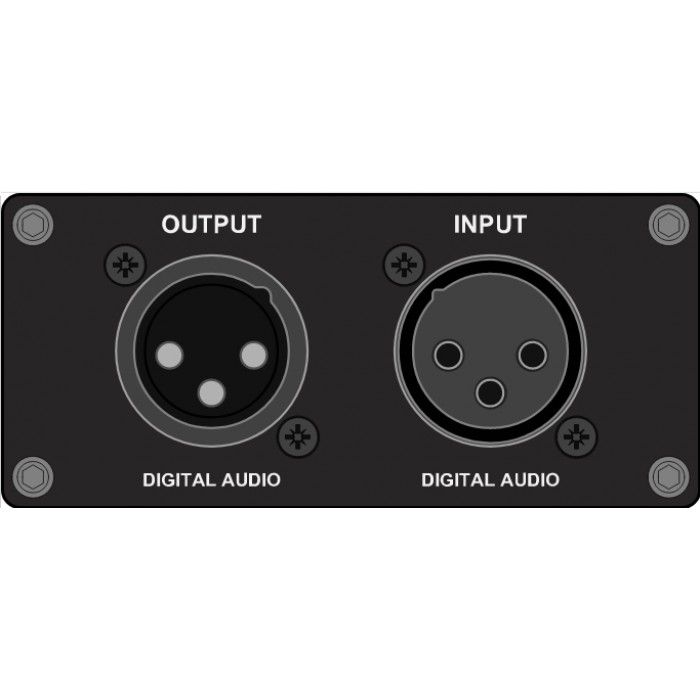

Digital Audio Connectors     XLR (Neutrik)
Digital Audio I/O     Synchronous – Bit Accurate
Audio Input     1 – Digital Stereo
Audio Output     1 – Digital Stereo
Audio Channels     2 – Stereo
Audio Sample Rates     44.1kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz
Audio Bit Depth     16bit / 24bit Resolution
Dynamic Range     96dB / 144dB
Jitter     Low
Audio Passthrough     AC3 / DTS
Drivers     UAC-2 Class Drivers :
Microsoft Windows 10 – Apple macOS/iOS – Linux ALSA – Android
Drivers – Optional     UAC-2 Custom Drivers :
StreamS/Thesycon Microsoft Windows 7-10 – WDM/ASIO
Power     USB Bus Powered – 5.0 Volts – 300ma
Enclosure     Aluminum Extrusion – Black w/Round Elastomer Bumper Feet
Dimensions – Device     120mm x 80mm x 35mm / 4.375” x 3.125” x 1.375” / L x W x H
3mm / .125” H – Additional for Feet
Dimensions – Shipping     229 mm x 139.7 mm x 88.9 mm / 9.0 in x 5.50 in x 3.5 in / L x W x H
Weight – Device     0.23 kg – 0.5 lbs
Weight – Shipping     0.91 kg – 2.0 lbs

Accessories

Cable – Type-A to Type-B – USB 2.0 – 28AWG+24AWG Ferrite Core – 1.0m – Black
Cable – Type-C to Type-B – USB 2.0 – 1.0m – Black – Optional
XLR Cable/Connectors Optional
