RAmi Audio AMC250

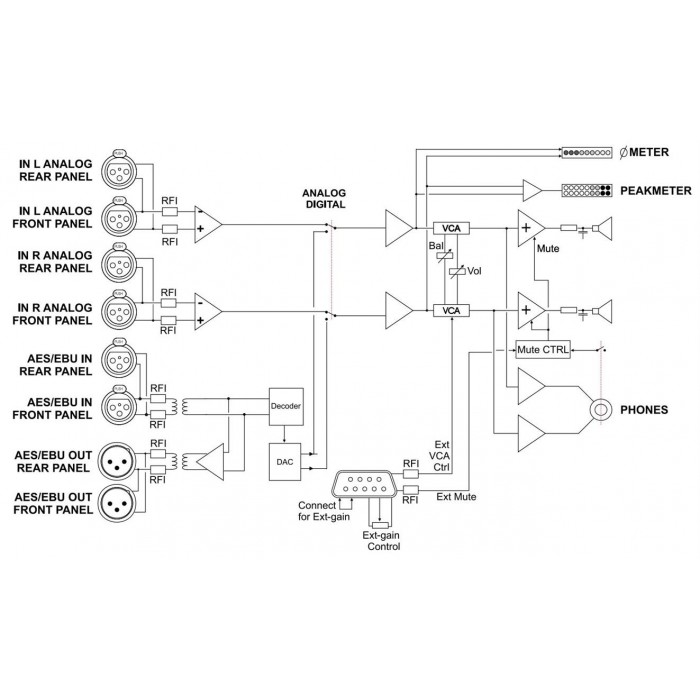

The Rami Audio AMC250 is a 2RU rackmount analogue and digital audio monitoring unit with peak, phase metering and built in speakers.

This digital audio input accepts all standards (AES/EBU, S/PDIF, IEC 958) up to a 24 bits resolution and a 96 KHz maxi sampling rate.

  • Volume level and balance control via VCA.
  • Phasemeter on LED bargraph for a complete monitoring of audio.
  • LED peakmeter (dBu for analogue and dBFs for digital).
  • Front panel 6.35 mm jack headphone output. Automatic switching of internal speakers.
  • Mute via remote control.
  • Analogue balanced inputs available on the front and rear panel.
  • XLR balanced input (AES/EBU 110 Ohms) / AES/EBU output available on front and rear panel.
  • Female DB9 remote control connector (volume and mute).
  • Volume control either via front panel switching or via external potentiometer.
