Alice Timecode DA

Brand: Alice

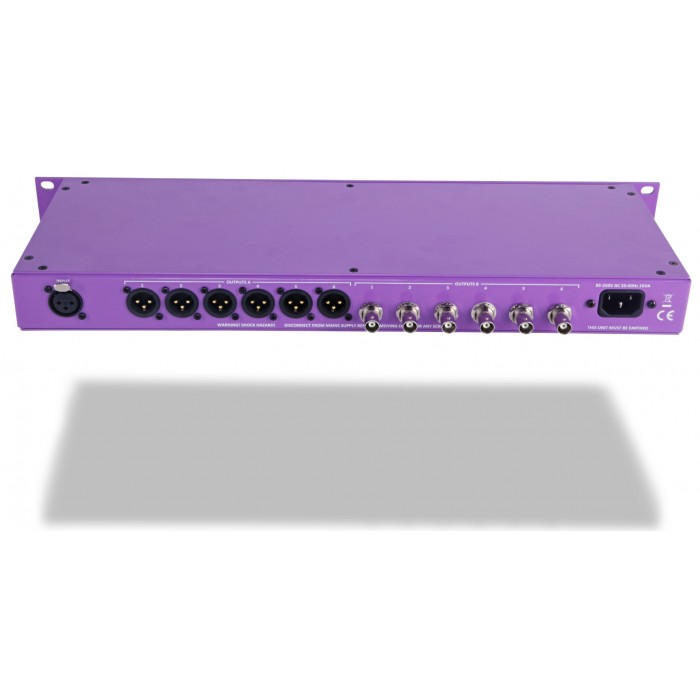

The Alice TC-DA LTC is a 19” rack mounted timecode distribution amplifier which provides six balanced outputs via Neutrik XLR connectors and six unbalanced outputs via 75ohm BNC connectors.

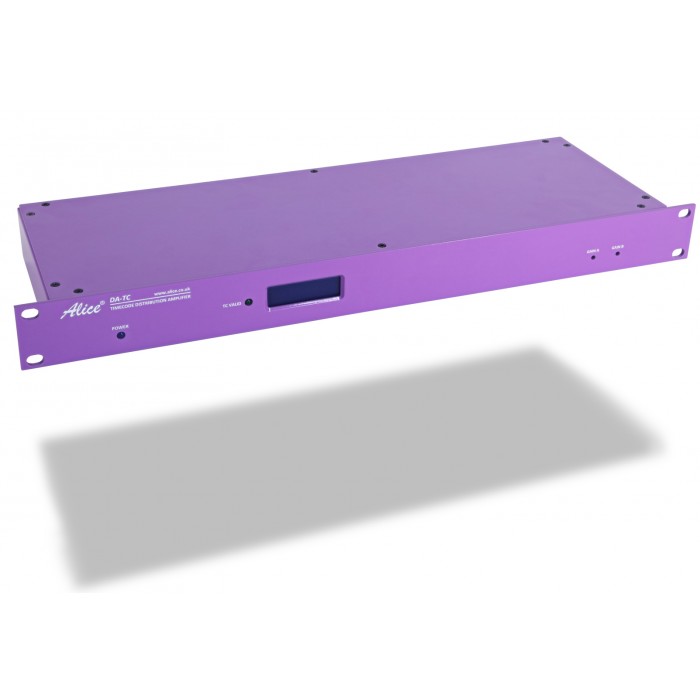

The front panel has a large illuminated LCD display showing timecode. The display can be programmed to show your company name on boot-up at time of order.
Each bank of six outputs are adjustable via front panel mounted multi-turn trim pots.
Uses include, on-location shooting with PSC cameras and portable audio mixers that require a jammed LTC timecode signal, outside broadcast trucks or fixed installations that require timecode to be sent to EVS, mixing desks and studio clocks etc.
Removal of incoming timecode signal displays ‘no timecode’.

Technical Specification
Input impedance: internally selectable 20k ohms or 600 ohms balanced
Input: common-mode rejection: 60dB typical
Frequency response: 20Hz to 20kHz ±0.2dB
Phase shift: 20Hz <1° 20kHz<5°
Noise: -100dB (RMS 30Hz to 15kHz) at unity gain - Ref + 8dBu output
Distortion: (THD) + 8dBu output: 40Hz 0.006% - 1kHz 0.006% 10kHz 0.02%
Output impedance: Minimum load: 600 ohms
Gain range: adjustable up to 20dB gain and 10dB loss
Max. input level: +28dBu
Max. output level: +26dBu into 5k ohms +24dBu into 600 ohms
0dBu = 0.775 volts RMS
Mains supply: 230 V AC (115V available to order)
Power consumption: 20VA
Case details: 1U 19" rack mounting, overall depth 165mm
Shipping weight: 1.95Kg
